Easy Way Smart Detector is The smallest device with a radar sensing system and 3D imaging system

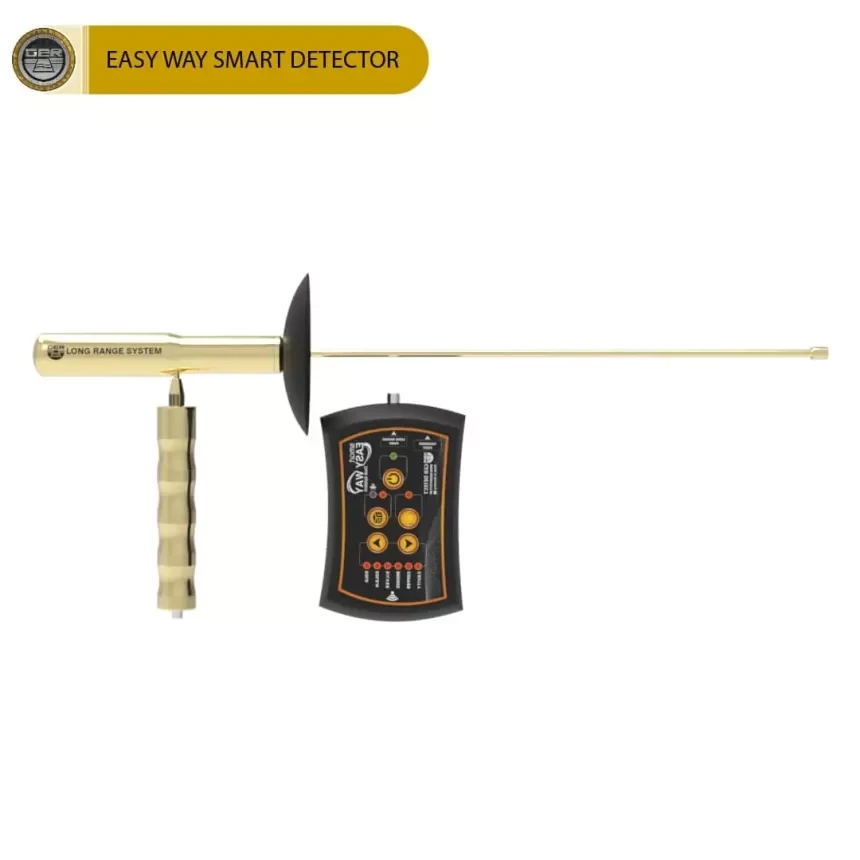

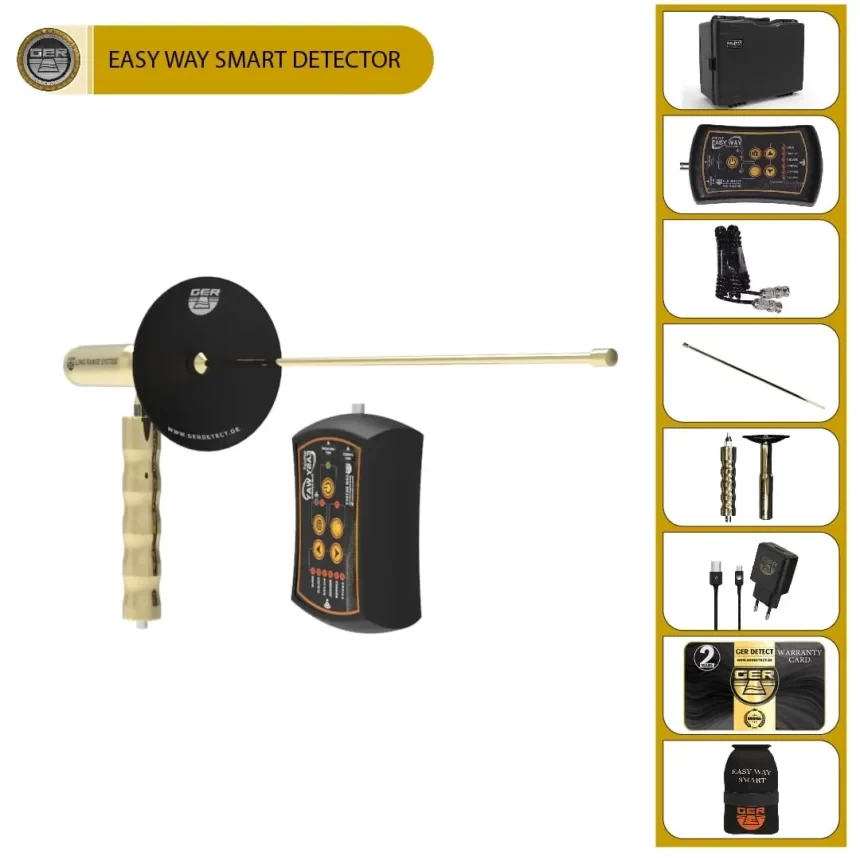

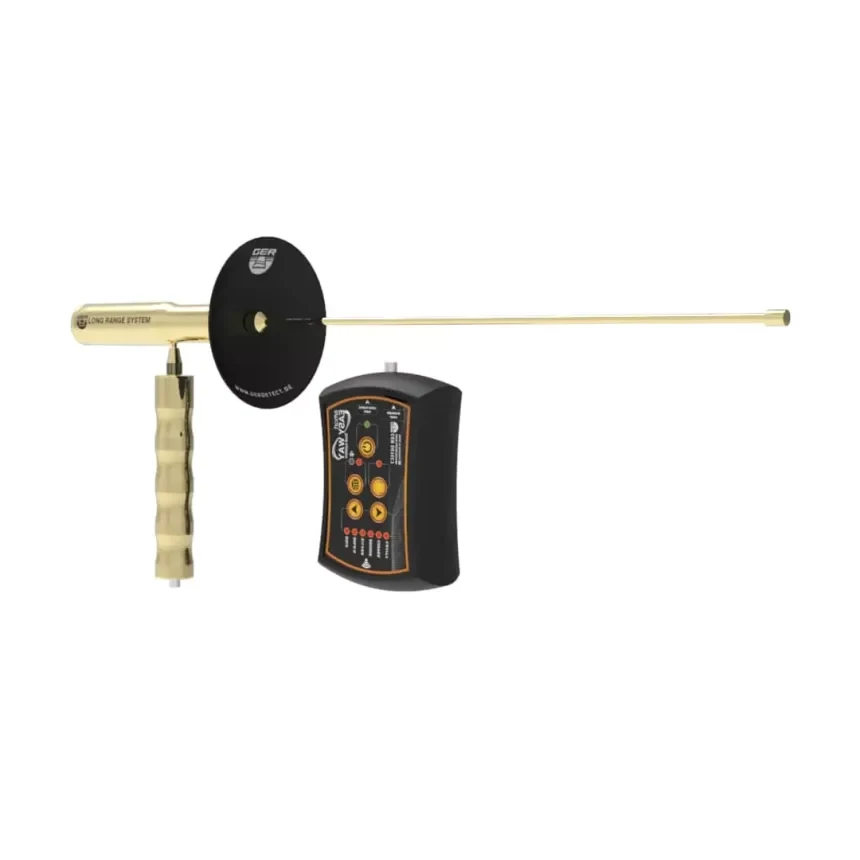

EASY WAY SMART DETECTOR
Easy Way Smart Detector was made After the tremendous success that achieved by GER Detect in cooperation with UIG Detectors on the EASY WAY PLUS device, GER Detect has completely upgraded this device to help prospectors shorten time and distance in finding the target.
The world unique and only technology that combines two systems within one device.
Specialized in prospecting and searching for gold, precious metals, burials, caves, and voids inside the ground, with confidentiality and ease.
The smallest device with a radar sensing system and a 3D imaging system, completely concealable.

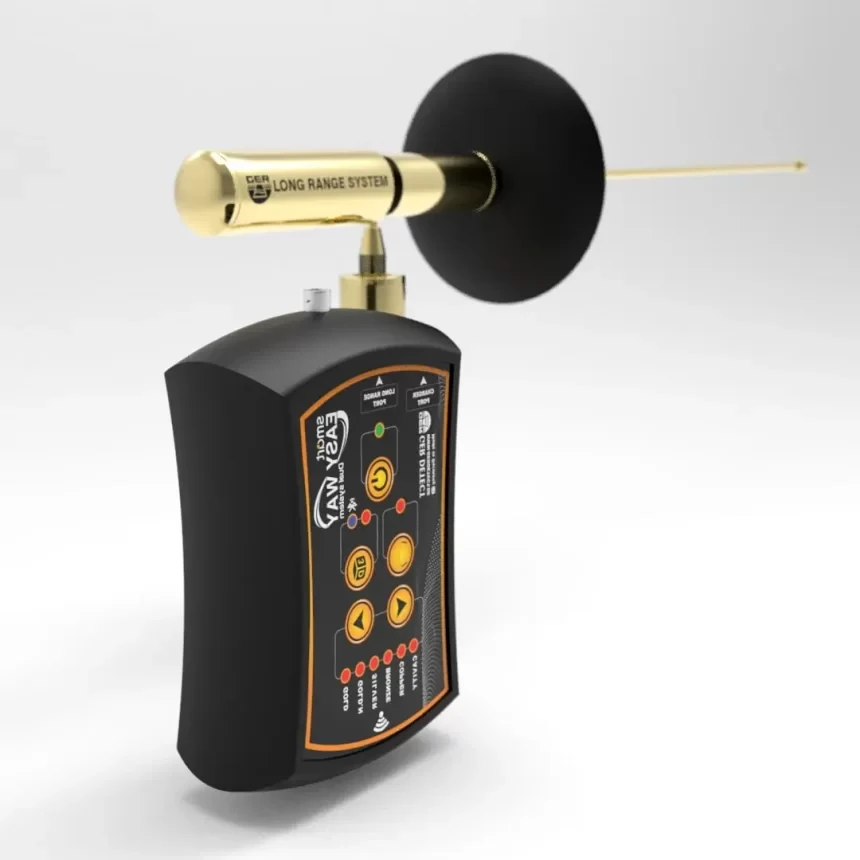

Long-range radar system:
GER Detect has invented the first device of its kind in the world with a single handgrip radar sensor system.
A grip is highly effective with a radar structure characterized by the analysis of radar waves that measure a target’s characteristics.
In other words, it is a high-precision dual-frequency radar and a transmitter and receiver of the signals coming from targets.
A radar system with special and sophisticated algorithms integration to detect the location of the target, consistent ability to detect and measure small targets in the ground.
The front range in the long-range system can reach up to 2000 square meters, which equals 500 meters in each direction, it also can reach a depth of 18 meters in the ground.

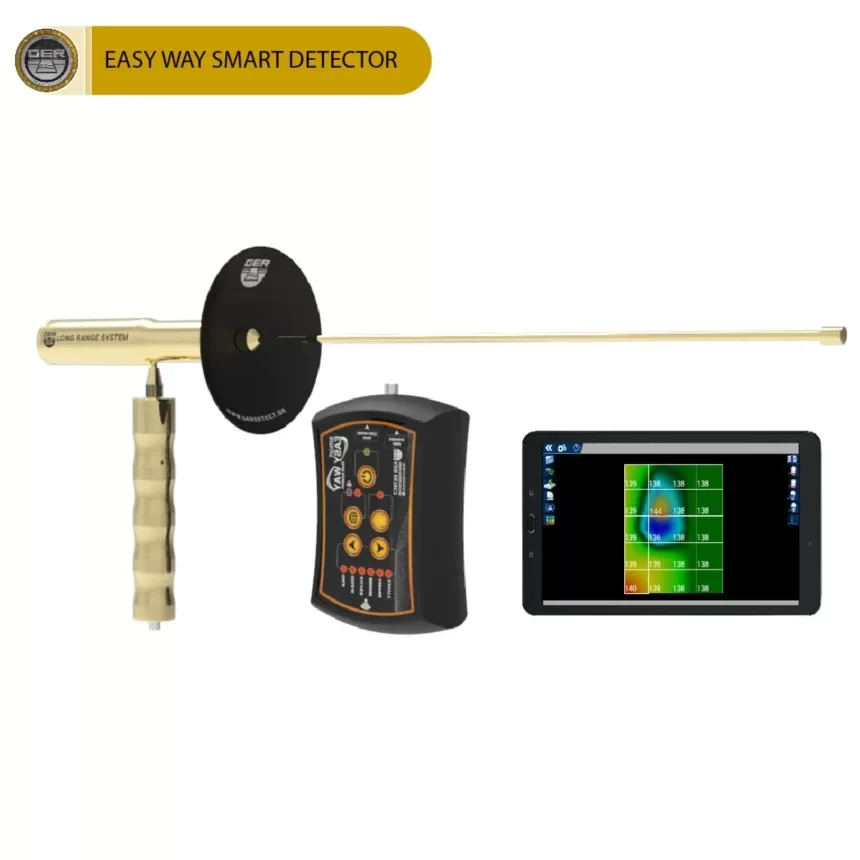

3D Imaging System:
This system is in Easy Way Smart Detector designed to avoid errors caused using the long-range system by the prospector and to confirm the existence of the target.
After identifying the target with the radar system, you can make scanning for the detected target with the 3D imaging system.
The EASY WAY SMART device has several characteristics:
This system is supported by an Android application that works in several languages, namely: (German – English – French – Italian – Spanish – Arabic – Portuguese – Russian).
Automatic calibration with soil.
Automatic ground scanning feature.
It reaches a depth of 18 meters underground.
Video explaining how the Easy Way Smart Detector Device work
The technical specifications
| Audio Output | piezo buzzer Ø:12mm – H:9.8mm sound pressure level 85db at 12v/10cm frequency 4.5±0.5 KHz |
| Length | Device (main unit): 145.5 mm |
| Data processing speed | 12 MHz |
| Operating Temperature Range | 0 C° to 70 C° |
| Operating Humidity Range | up to 95 % non-condensing |
| Storage Temperature Range | – 20C° to 70C° |
| Storage Humidity Range | up to 98 % Relative Humidity |
| Operating Time (7.56 Wh Battery) | 10 Hours |
| Waterproof Rating – Detector | not waterproof (weather proof only) |
| Bluetooth | HC-06 module – 2.4 GHz radio |
| Li-ion Battery Technical Specifications | |
| Type | Li-ion Rechargeable Battery – internal battery |
| Output Voltage | Li-ion 3.6 VDC |
| Capacity | Li-ion 7.56 Wh |
| Run Time | 10 Hours |
| Battery Operating Temperature | 0 C° to 60 C° |
| Battery Storage Temperature | – 2C° to 70C° |
| Electric Li-ion Battery Charger Technical Specifications !!! | |
| Operating Temperature | 0 C° to 50 C° |
| Storage Temperature | – 30C° to 80C° |
| Input Voltage | 90 → 250 VAC 50→60 Hz |
| USB Output Current | 5 VDC / 2000 mA |
| Car Li-ion Battery Charger Technical Specifications !!! | |
| Input Voltage | 11 → 15 VDC |
| USB Output Current | 5 VDC / 2100 mA |
| Other Technical Specifications | |
| weight total | 3550 g |
| Device weight | 230 g |
| Battery weight | 65 g |
| Bag weight (empty) | 2135 g |
| Bag dimensions | 460mm x 175mm x 342mm |
